Professional case analysis 8

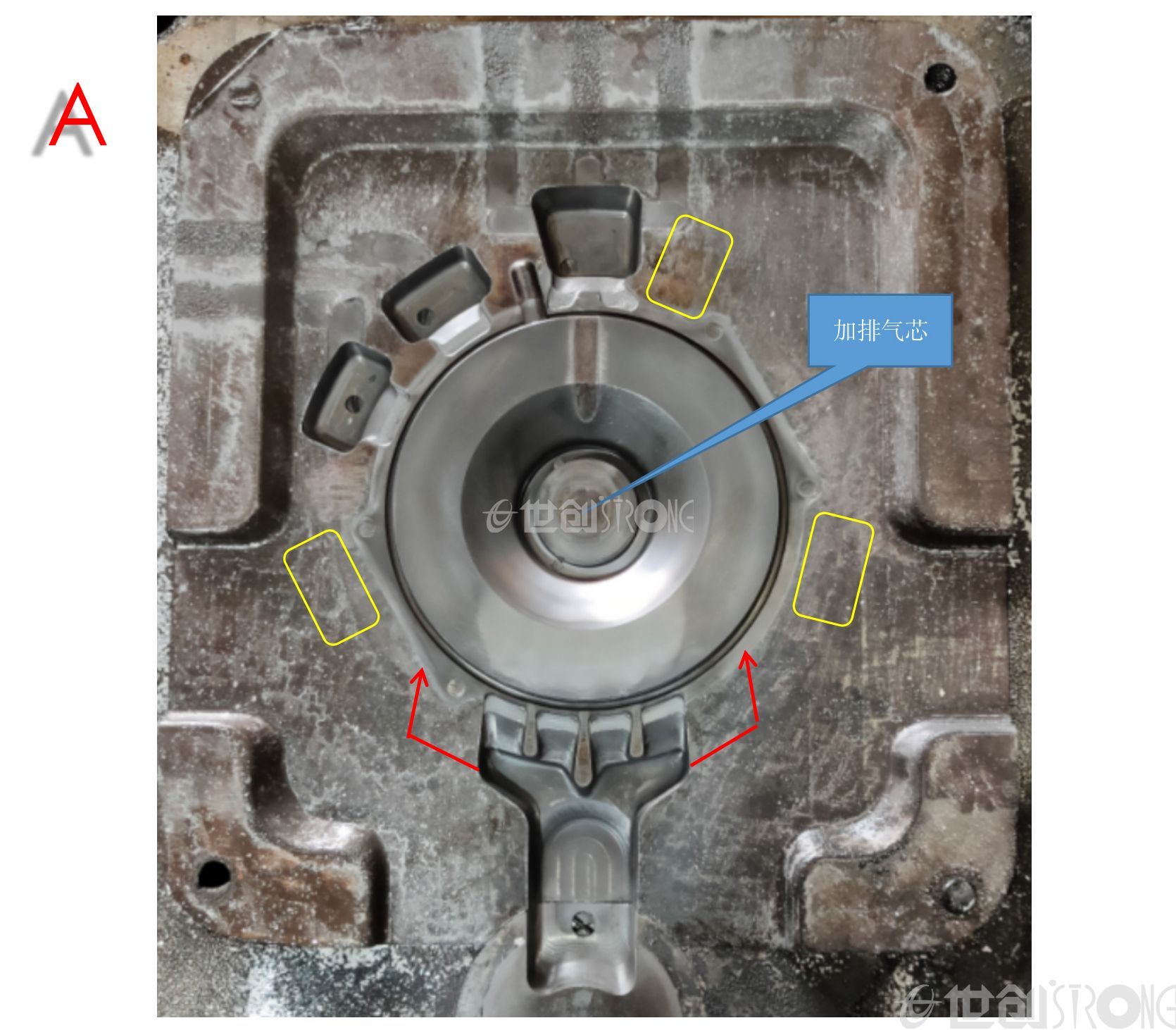

Recommendation A:


1. Add two water inlets according to the direction and position of the red arrow. The width is equal to that in the middle, and the thickness is half of the original;


2. Add slag ladle and exhaust according to the position shown in the yellow frame;


3. Add an exhaust core in the middle (the situation and requirements shall be in accordance with the annex).

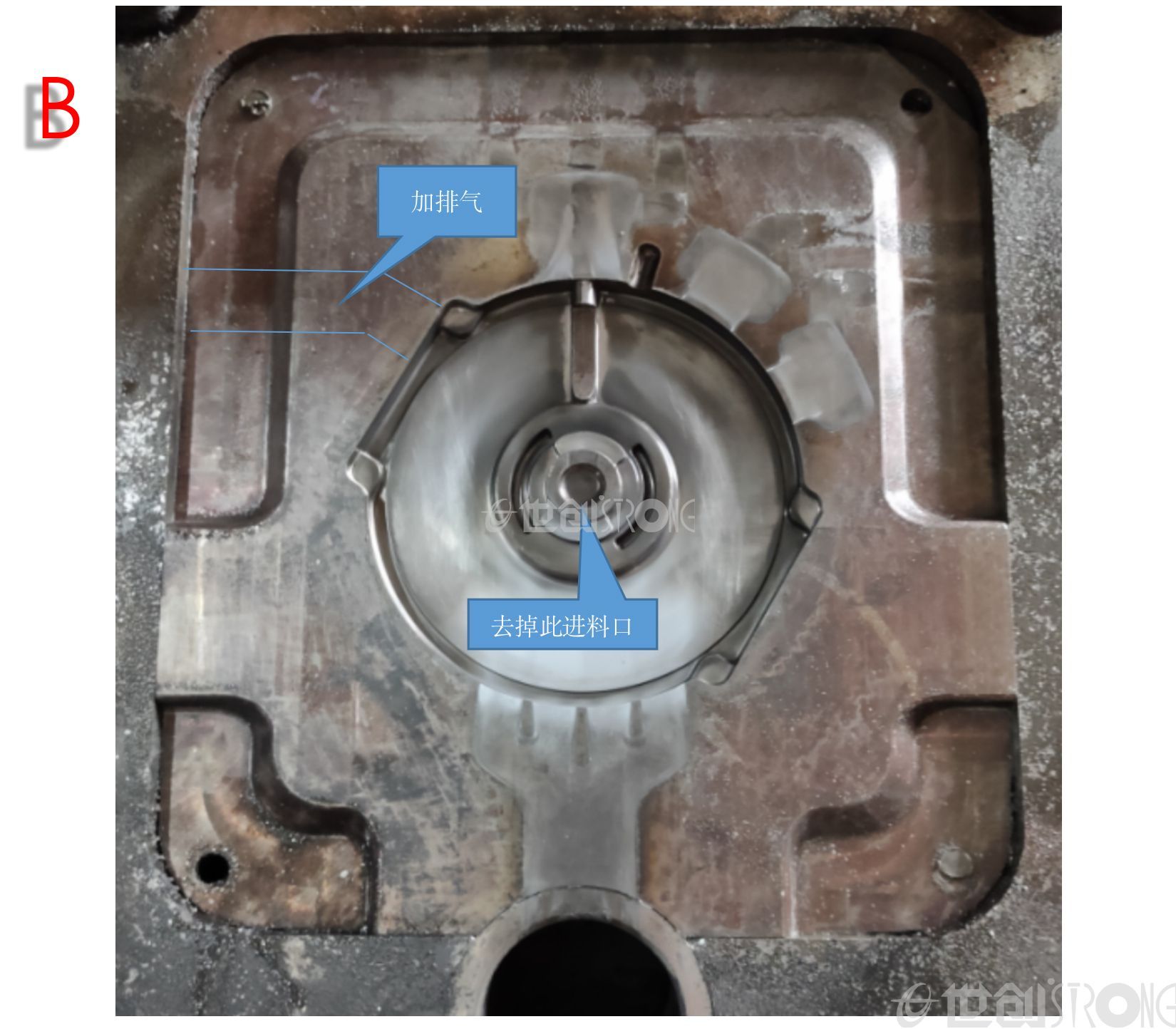

Recommendation B:


1. Change the middle aisle into slag ladle;


2. Add an exhaust slot at the place shown in Figure B;


3. When testing the mould, start slowly and gradually accelerate.
