Professional case analysis 9

Recommendations:

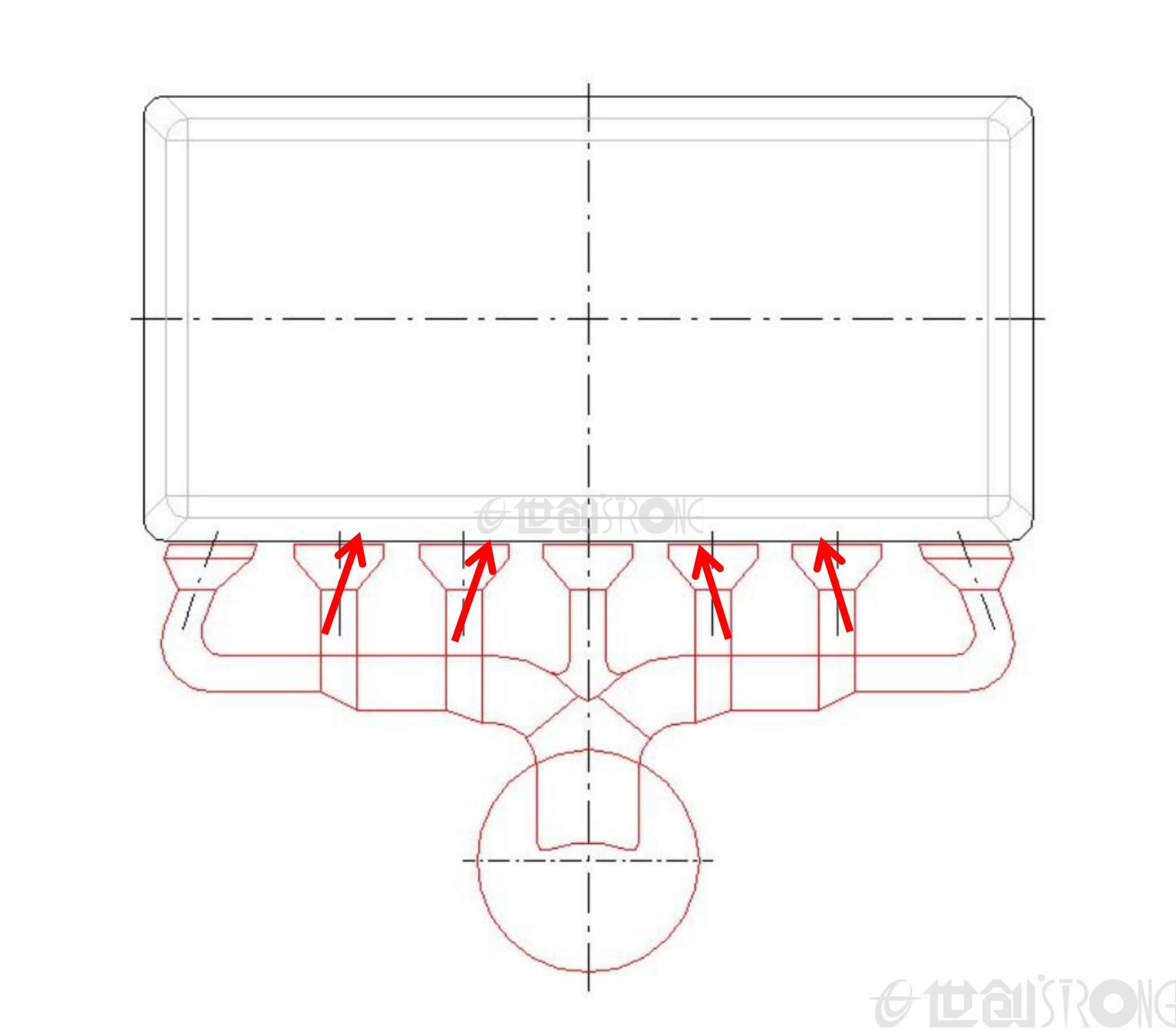

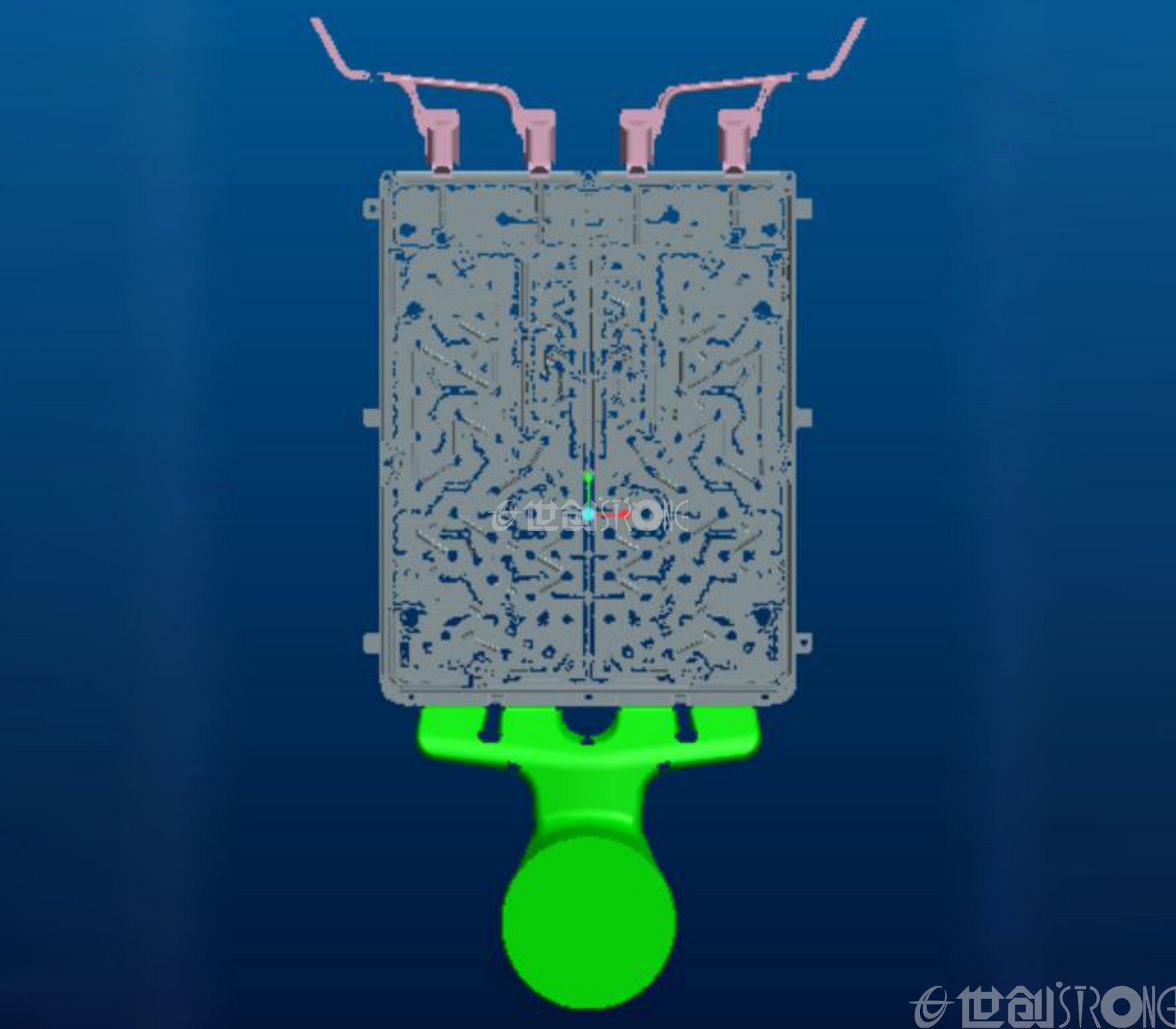

1. If you want to fill the plane in the middle first, the original flow channel method will be somewhat inadequate (the water flow will scatter on both sides like a red arrow). It is suggested to use the form shown in the figure as below, which will have a much better directionality;

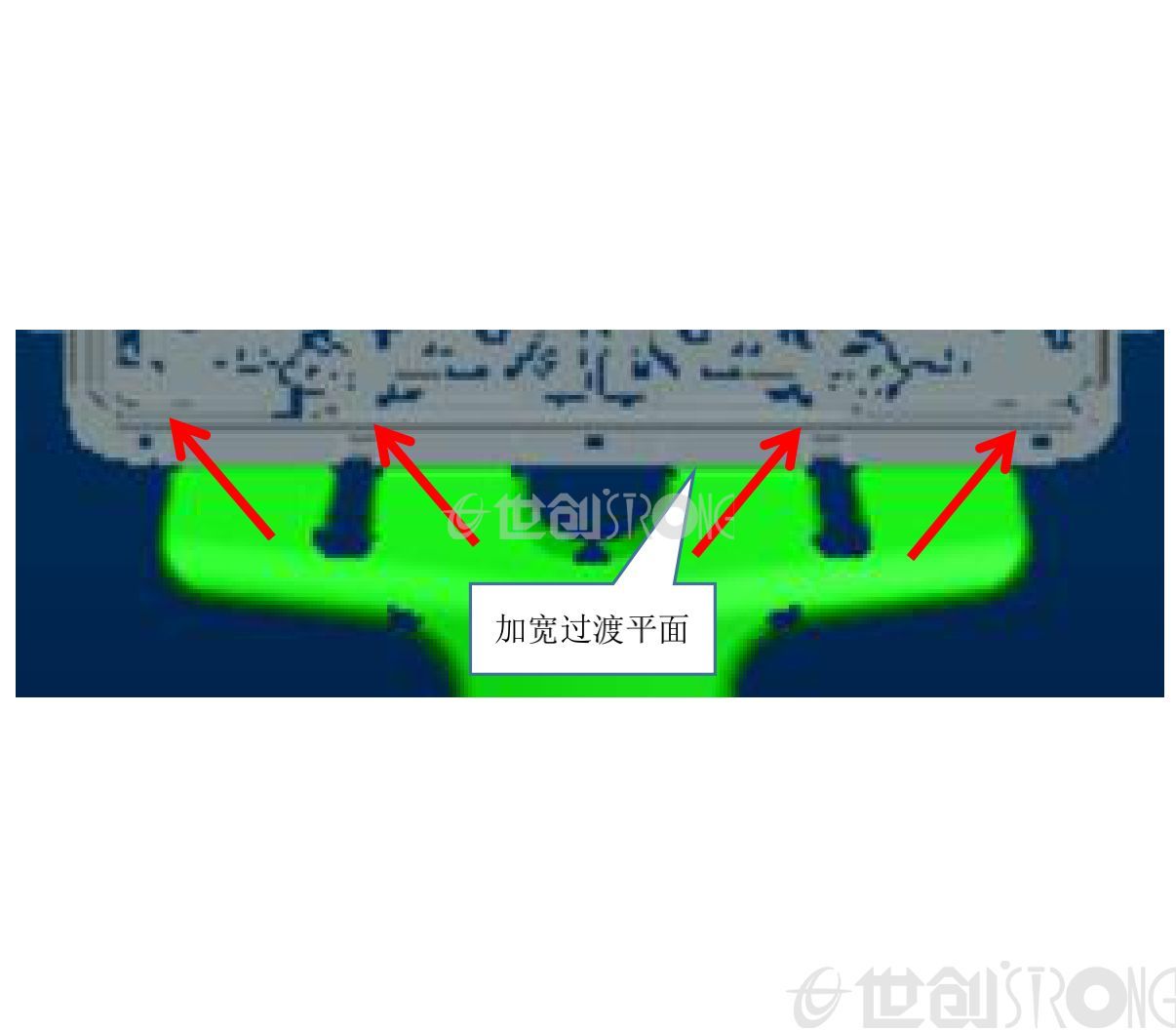

2. Widen the transition plane downward so that the feed liquid will not be directly pressed down;


3. The thickness of the inner gate is 5mm, the thickness of the middle plane is 3mm, it will force the water to both sides. Therefore, it is recommended to change the thickness of the product or inner gate.
