Professional case analysis 5

Recommendations:

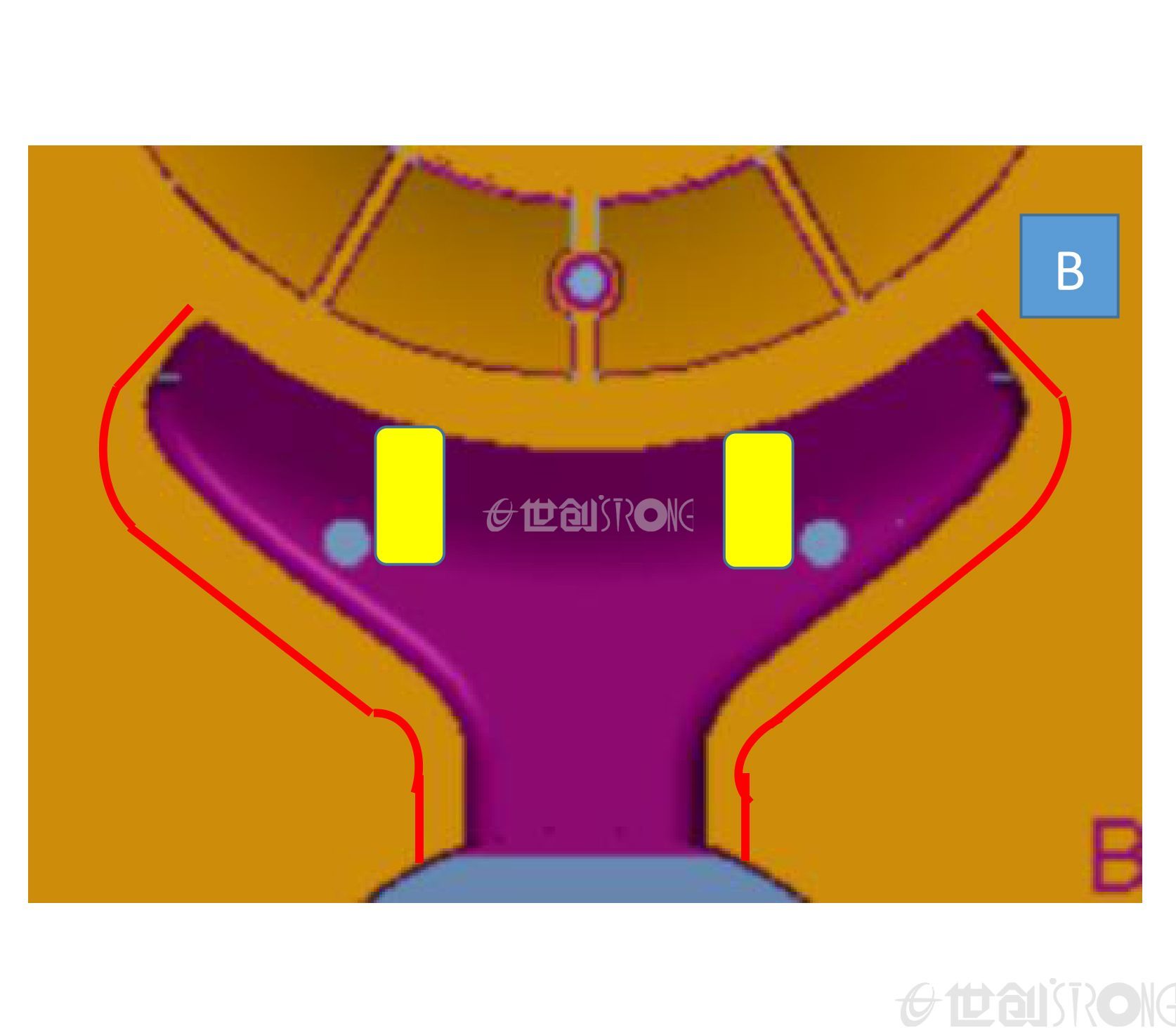

1. Adjust the angle on both sides of the inner gate. The angles on both sides shall point to the center (as shown by the red line in the figure);

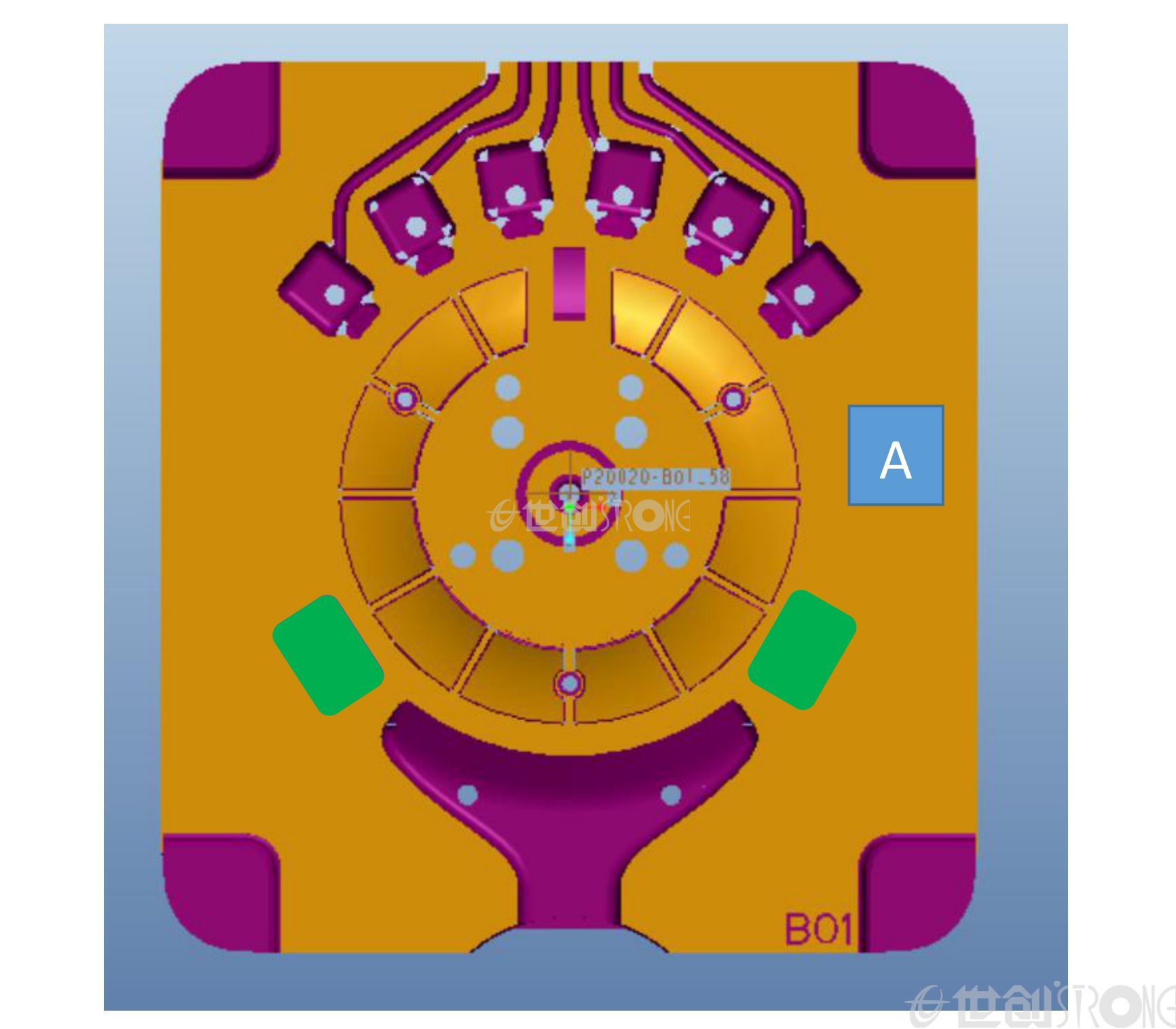

2. Widened runner (if anyFigure A shown by the red line below the runner);


3. Add two water retaining blocks to the inner gate and transverse sprue (e.g Figure A and C  shown in the yellow frame);


4.Add two slag bags and exhaust (e.g Figure A shown in the green frame).
