Professional case analysis 2

Recommendations:

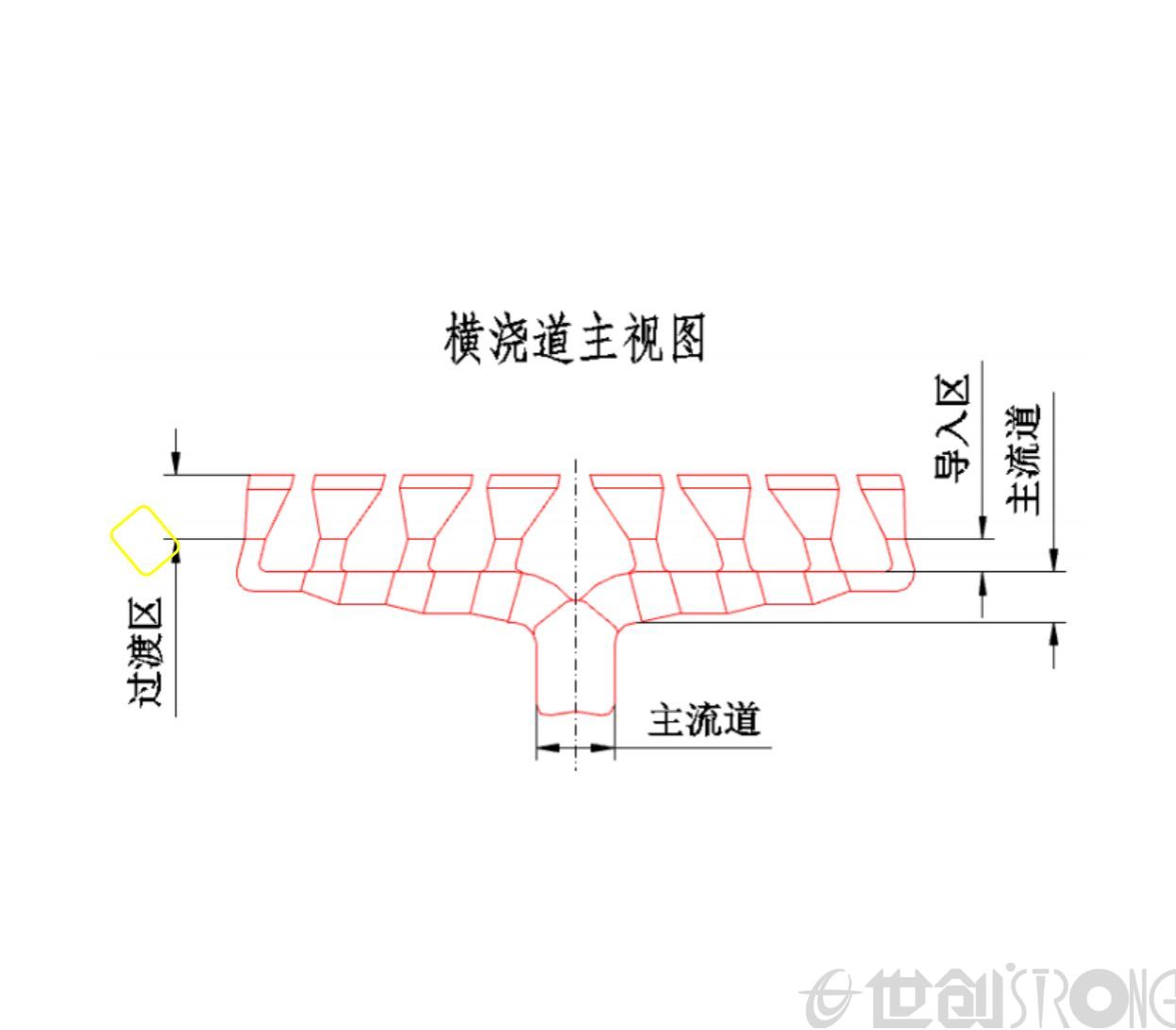

1. The main flow channel starts from the direct flow channel of the shunt cone, and the cross-sectional area decreases step by step. The effect of filling will be much better.

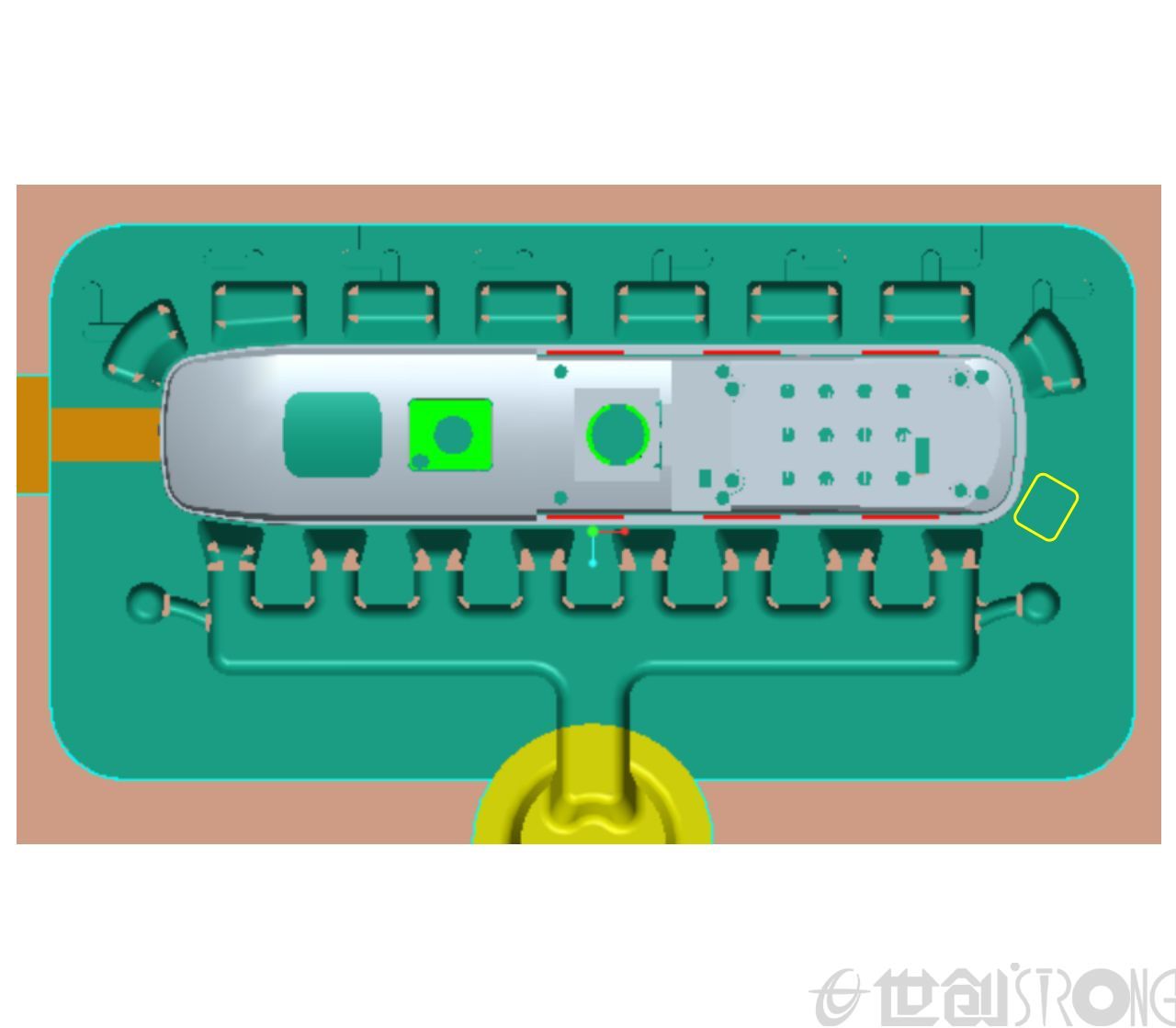

2. Add slag discharge and exhaust at the Yellow frame.



3. The exhaust of the original slag ladle shall be widened according to the principle of 10-15% of the inner gate area.



4. Whether it is the product or mould structure, sharp corners should be avoided as far as possible. Otherwise, the service life of the mould will be seriously endangered.



4. The mould is best cooled by cooling water holes. Otherwise, it is common for erosion and cracking to occur prematurely.



The development and application of die casting mould steel is one of the main businesses of STRONG TECHNOLOGY company. Combined with Centennial Daye Special Steel and relying on the company's strong strength of material heat treatment for 30 years, it provides customers with one-stop solutions for die casting mould steel such as high-end high-quality base metal, machining, heat treatment, coating, mould design and maintenance and failure analysis.
